Recraft Text to Vector - ComfyUI 原生节点文档
通过文本描述生成可缩放矢量图像的 Recraft 合作伙伴节点

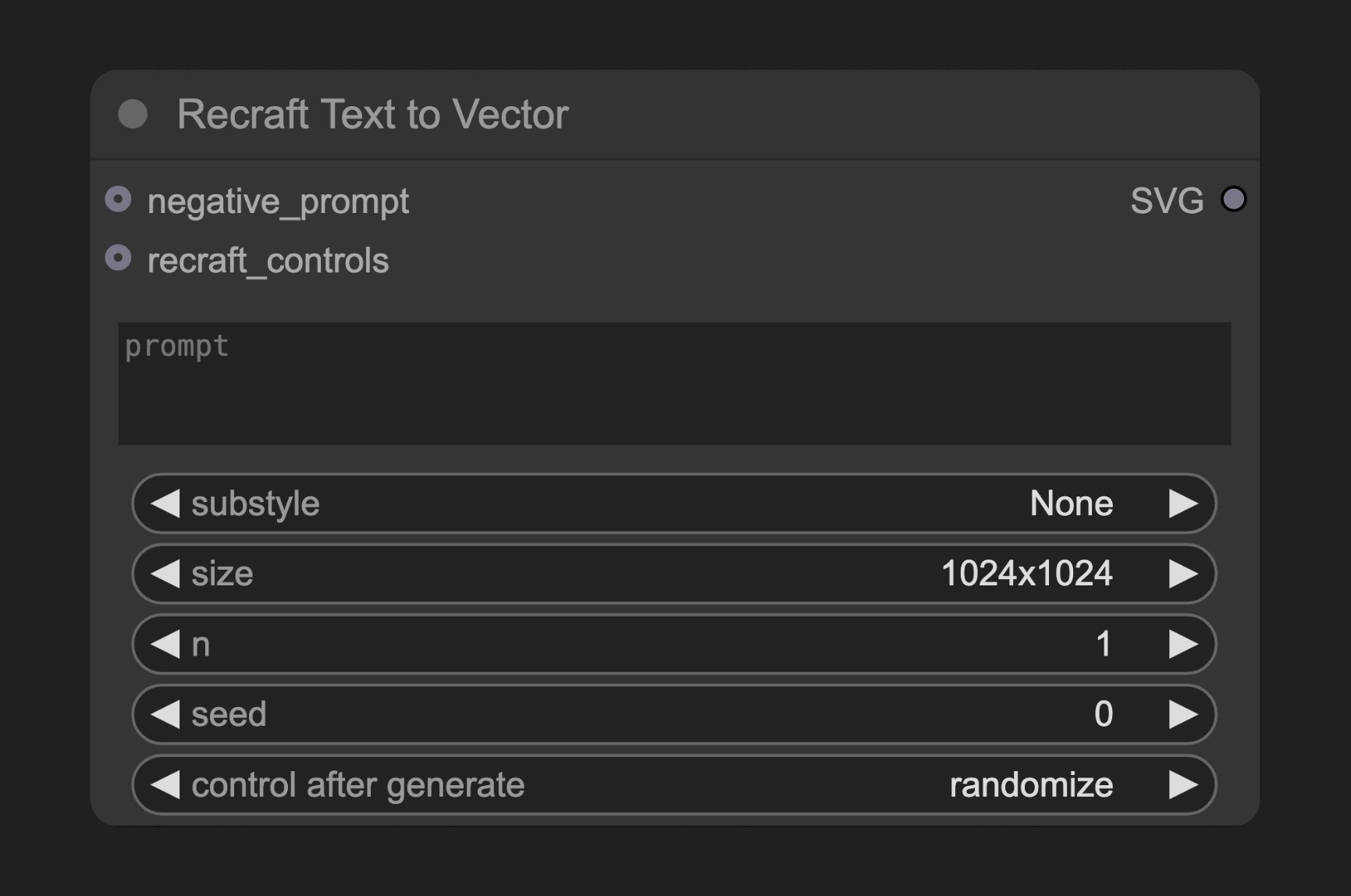

Recraft Text to Vector 节点允许你通过文本描述通过 Recraft 的 API 生成高质量的矢量图形(SVG格式)，适用于创建标志、图标和可无限缩放的插图。
参数说明
基本参数
| 参数 | 类型 | 默认值 | 说明 |
|---|---|---|---|
| prompt | 字符串 | "" | 描述要生成的矢量图形 |
| substyle | 选择项 | - | 矢量风格的子类型 |
| size | 选择项 | 1024x1024 | 输出矢量图的画布尺寸 |
| n | 整数 | 1 | 生成结果的数量(1-6) |
| seed | 整数 | 0 | 随机种子值 |
可选参数
| 参数 | 类型 | 说明 |
|---|---|---|
| negative_prompt | 字符串 | 指定不希望出现的元素 |
| recraft_controls | Recraft Controls | 附加控制参数(颜色等) |
输出
| 输出 | 类型 | 说明 |
|---|---|---|
| SVG | 矢量图 | 生成的SVG矢量图形，需连接到SaveSVG节点保存 |
源码参考
[节点源码 (更新于2025-05-03)]
class RecraftTextToVectorNode:
"""
Generates SVG synchronously based on prompt and resolution.
"""
RETURN_TYPES = (RecraftIO.SVG,)
DESCRIPTION = cleandoc(__doc__ or "") # Handle potential None value
FUNCTION = "api_call"
API_NODE = True
CATEGORY = "api node/image/Recraft"
@classmethod
def INPUT_TYPES(s):
return {
"required": {
"prompt": (
IO.STRING,
{
"multiline": True,
"default": "",
"tooltip": "Prompt for the image generation.",
},
),
"substyle": (get_v3_substyles(RecraftStyleV3.vector_illustration),),
"size": (
[res.value for res in RecraftImageSize],
{
"default": RecraftImageSize.res_1024x1024,
"tooltip": "The size of the generated image.",
},
),
"n": (
IO.INT,
{
"default": 1,
"min": 1,
"max": 6,
"tooltip": "The number of images to generate.",
},
),
"seed": (
IO.INT,
{
"default": 0,
"min": 0,
"max": 0xFFFFFFFFFFFFFFFF,
"control_after_generate": True,
"tooltip": "Seed to determine if node should re-run; actual results are nondeterministic regardless of seed.",
},
),
},
"optional": {
"negative_prompt": (
IO.STRING,
{
"default": "",
"forceInput": True,
"tooltip": "An optional text description of undesired elements on an image.",
},
),
"recraft_controls": (
RecraftIO.CONTROLS,
{
"tooltip": "Optional additional controls over the generation via the Recraft Controls node."
},
),
},
"hidden": {
"auth_token": "AUTH_TOKEN_COMFY_ORG",
},
}
def api_call(
self,
prompt: str,
substyle: str,
size: str,
n: int,
seed,
negative_prompt: str = None,
recraft_controls: RecraftControls = None,
auth_token=None,
**kwargs,
):
# create RecraftStyle so strings will be formatted properly (i.e. "None" will become None)
recraft_style = RecraftStyle(RecraftStyleV3.vector_illustration, substyle=substyle)
controls_api = None
if recraft_controls:
controls_api = recraft_controls.create_api_model()
if not negative_prompt:
negative_prompt = None
operation = SynchronousOperation(
endpoint=ApiEndpoint(
path="/proxy/recraft/image_generation",
method=HttpMethod.POST,
request_model=RecraftImageGenerationRequest,
response_model=RecraftImageGenerationResponse,
),
request=RecraftImageGenerationRequest(
prompt=prompt,
negative_prompt=negative_prompt,
model=RecraftModel.recraftv3,
size=size,
n=n,
style=recraft_style.style,
substyle=recraft_style.substyle,
controls=controls_api,
),
auth_token=auth_token,
)
response: RecraftImageGenerationResponse = operation.execute()
svg_data = []
for data in response.data:
svg_data.append(download_url_to_bytesio(data.url, timeout=1024))
return (SVG(svg_data),)官方原文
